My 75 Gallon, Start to Finish....

[masterswimmer]

Tony, not a bad start. As for the sump, I don't see why you need to have your overflow run into 'A' and then a bubble trap. If you move your skimmer to 'A' (and adjust the baffles accordingly) then have your bubble trap, you will utilize your space more efficiently. As a matter of fact, if you were to split your overflow with a pvc wye and run 1/2 to the right side of your drawing (a fuge) and have your return pump in the middle chamber you can fit everything into this one tank.

Hope that was clear.

Russ



[nanoreefer22]

I'm with Russ. Move the skimmer into compartment A and move the two baffles to where the 'lone' baffle is. Keep it just like that low, high, low(How you have it). Other than that it looks like a good plan to me. I'm just worried about how much flow your gonna have coming out of each return.

Personally I think its gonna be close to nothing, I have a mag 7 coming through 1 return line and its not strong at all IMO. Keep it to 1 return spout so you get more from it. Just what I would do.



[Tonyscoots84]

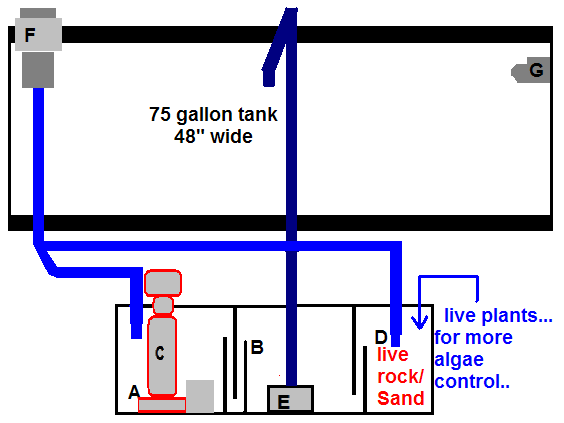

this is what your talking about...



[nanoreefer22]

Looks good but i see a problem.......










































Your ABC's are all messed up :lol:



[Tonyscoots84]

your funny kris. thats CAUSE I MOVED EVERYTHING AROUND lolz hehehehe ...

you actually made me laugh for like the 1st time today...



[masterswimmer]

LMAO @ Kris......you're on a roll tonight!


You don't need a bubble trap coming out of the fuge. Just one baffle from the bottom up to the height you want the fuge level at. Bada Bing Bada Boom, done!

master



[nanoreefer22]

Glad to see I'm bringing some cheer around guys :icon16:



[masterswimmer]

Oh, and make sure you don't use a 'T' on your overflow. Use a wye. Why? Wye, you say. Because we like you!!!!



[nanoreefer22]

Oh, and make sure you don't use a 'T' on your overflow. Use a wye. Why? Wye, you say. Because we like you!!!!

LMAOO!! I'm rubbing off on Russ :icon16::approve:



[Tonyscoots84]

gotcha if i had patience to sit hear and draw a perfect y i would but im to lazyyyy...

lolz thanks guys.



[masterswimmer]

You also need to add one more baffle to the skimmer side. On the center chamber add one more from the bottom up. This will give you a better constant level in your return chamber.

da master has returned



[Tonyscoots84]

we got a bunch of comedians now.. lolz.. hold on imma get you both a pair of clown shoes and a red fluffy noisee. :joke:lolz



[Tonyscoots84]

ya just confused me??????



[masterswimmer]

LMAOO!! I'm rubbing off on Russ :icon16::approve:

If my wife hears you say that, my arse is grarse :banghead:



[Tonyscoots84]

hahaahahhaaaa.... that wouldnt be good russ.



[masterswimmer]

ya just confused me??????

In the center chamber, where you have your return pump. Add one more baffle (to make three) on the skimmer side of the sump. Make the baffles, over, under & over.

Is that better now :kiss:



[nanoreefer22]

If my wife hears you say that, my arse is grarse :banghead:

Hahahahaaaa we'll keep it :shhh: for now...:lol:



[Tonyscoots84]

is this better :banghead: :irked: :banghead: :thanks:



[masterswimmer]

No problem with that :shhh:
Add a little :smokin: and who know's what'll be said next.



[masterswimmer]

is this better :banghead: :irked:

Nooooooooo. You still didn't remove the baffle from the fuge side. You don't need one from the top down. :irked:
