James's supercharged 120 build

[usctom]

Too Funny.

As far as painting after it is glued. I wouldn't worry about it doing anything to the glue.

married? man I just got out of college hah Iv been with the queen for 6 years though.

When she asked for a ring, I did the rational thing... I got her a yorkie puppy, got out of that one for another year or so.

Question: I ordered black Fusion spray paint for the plumbing but didn't want to wait the week to get it so I glued everything anyway. Can I still spray the plumbing after its been glued? Im worried the spray paint will mess with the pvc glue on the fittings.



[james1990]

Still need to paint the closet with a latex bathroom/ kitchen paint.

Herbie overflow plumbing done for the most part.

don't ask...



[james1990]

finished painting the room and the return plumbing.

I ended up adding another ball valve on the return to the display just in case. if anything I used it for the unions.



[strgazr27]

Nice job on the pipe work but please tell me your swapping out those outlets for GFI's.
One other thing I notice is the return pump hard piped all the way. With the plumbing secured to the wall the wL it is and the pump hard piped the hum from vibrations is going to be pretty substantial. Consider cutting in a 6" piece of either spa flex or clear flexible tubing. Will do wonders for the sound level. You can also use pieces of magic eraser behind the pipes that are wall mounted. Just commenting from experience.



[Jaftica]

+1 on the gfi outlets, unless it's a gfi circuit breaker



[mbg75]

Looks great so far. Why did you change the fans in the ati? Quieter?
Mine are noisy as heck. If it worked what type of fans are they and was it
Hard to do? Thanks

Shouldn't be loud on 9v. Check the voltage your running them.



[james1990]

it's not clear in the pics but those are deff GFI. I didn't like the barb fitting that came with the Jabeo pump so I'll switch that out. the flex tube will give the pump play too



[james1990]

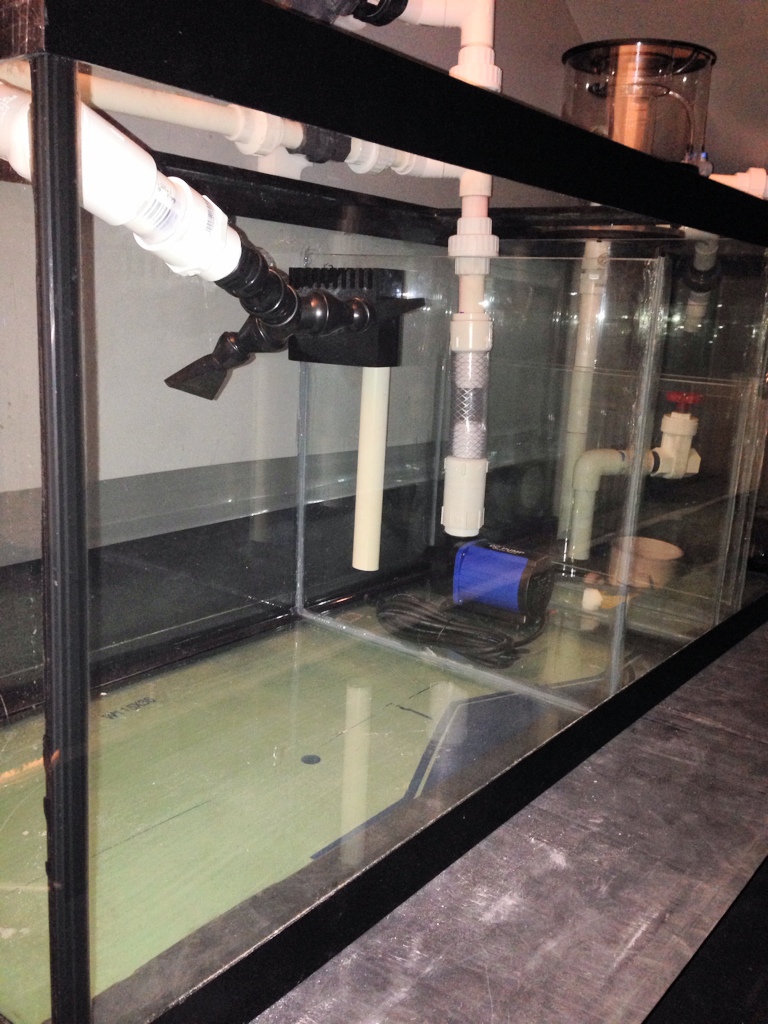

update: so I redid the return plumbing because I didn't like how close the fitting was to the GFI outlet. I also added a ton of unions.

I still need to make the filter sock tray but need to wait till Monday when I'm off work. Dubs said he would help too.

the refugium is about 30 gallons. any suggestions on what to do with it for an sps tank? Miracle mud, sand bed, macro algae, frag tank...

LifeReef skimmer with Jabeo 6000, 8" cup, and Mazzei Venturi. ill do a full review on it when I get it going but so far it's the best "feeling" skimmer I have seen.



[james1990]

oh I also took some suggestions and used tubing on the return. I'll add zip ties but that tube is really on the barbs good



[rideit6578]

.....wow. I know who is helping with my next set up! great job so far



[viplok]

dont know if that jebao pump can pump out enough water to supply all those outlets.

looking great so far! keep it up!



[oh207]

Wow! Nice work. I'm having some serious manifold envy!



[james1990]

a select few here on MR are responsible for the design and thought behind this tank. all I did was ask the right questions (most of the time) and put parts together

I don't plan on having all 5 outputs on the manifold running at all times. I wanted them there for future equipment. atleast I'll never run out of ports! one thing ill note is the Spears valves from bulk reef were well worth the extra cost.



[lnevo]

Dont short change yourself here man...you asked questions, you got many answers, not all the same. At the end of the day it was your design well researched and thought out and vetted by everyone through your questions. Ultimately it's your build and with a spectacular execution so far!!! Can NOT wait to see the finished product!!!!



[strgazr27]

update: so I redid the return plumbing because I didn't like how close the fitting was to the GFI outlet. I also added a ton of unions.

I still need to make the filter sock tray but need to wait till Monday when I'm off work. Dubs said he would help too.

the refugium is about 30 gallons. any suggestions on what to do with it for an sps tank? Miracle mud, sand bed, macro algae, frag tank...

LifeReef skimmer with Jabeo 6000, 8" cup, and Mazzei Venturi. ill do a full review on it when I get it going but so far it's the best "feeling" skimmer I have seen.

Nicely done! Looks much better.



[james1990]

thanks, Im surprised on how much time needs to be invested to get a system like this going. Progress seems slow but Im just taking it one task at a time. So hell yea ill take some credit hah!

Now all I need to do is take a obsessive and aggressive stand on a lighting method lol



[Montaquelaveist]

thats a great setup very nice i did something very similar to that with the closet next to my tank wish i could have put a bigger sump but what i have is working out pretty good no more upgrades for me my 220 is the end



[james1990]

some pictures of when I acid dipped about 100lbs of BRS pukani.



[JonnyJ]

Looking great, well documented James



[james1990]

thanks J. I'm trying to upload as much as I can.

Q: I have a new 800w titanium heater, would this be enough to keep around 150gallons? or would I need a spare back up
