Equipment setups: show em off

[reefs4life]

Here's mine:
My fuge is a 30G x-high which is on the right of everything in the picture below and the fuge itself is the third pic. The RO/DI is on the right of the fuge, you can see it in the third pic as well and there's a float valve in the sump so topping off is so much easier than it was in my 75G



[fallenlordz]

My nice little 10g setup for my main 55g tank...
There is a phosban reactor to the left and chiller to the right - that is not in the pic.



[dj ze]

my 180 is plumbed down to the basement into a a 8 ft 190 and a 45 gallon fuge wich both dump into a 125 and returned back with a dart pump my skimmer is a super reef octopus 5000 external cone pictures are not so great taken with my i-phone



[Kaz289]

Bump, thread has been dead a while. I like seeing people's DIY projects.



[Mattl22]

Great thread love the ideas !!



[Kaz289]

The new setup runs from the living room through the floor and into the tank room in the basement. Special thanks goes to my brother Dan "kkaz642"



[duke62]

this is my 92 corner fuge sump 3 tiered system i built.i would not use the stand the 92 corner came with there is no room to fit anything in there.the first tier is the 20 gallon fuge all i have in there is my chaeto,filte sock and a maxijet 404 for some flow..the sump consists of a filter sock,vertex in 180 skimmer,2 reactors 1 for carbon and 1 for phosban.i have a 300 w titanium via aqua heater and a mag 7 for return



[masterswimmer]

Duke, why do you run a filter sock in your fuge?

swimmer



[duke62]

because the chaeto holds ALOT of debris and the sock cuts it down.even with the flow it used to build up alot before i put in the sock.now instead of cleaning the fuge out every week i can pay more attention to the DT.



[kenconnect]

my sump / refugium set up



[rkaragozler]

Nice set up Ken, Lifereef I see, If you take that 90 elbow out and replace it with a straight and loop the hose you will have more flow.



[kenconnect]

Thanks Richie... But which 90 u talking about.



[rkaragozler]

The 90 from the return pump with the gate valve on it.



[rkaragozler]

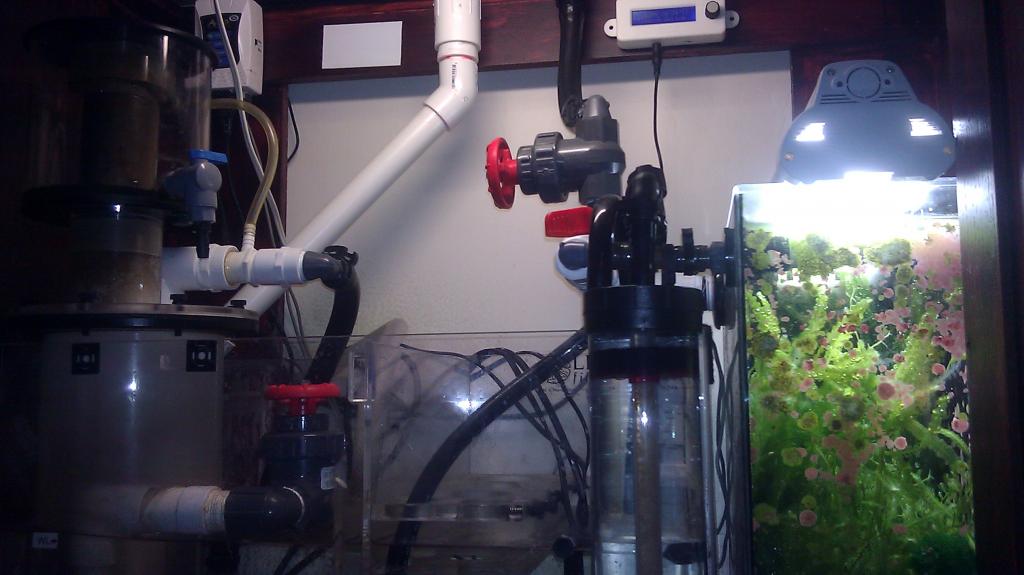

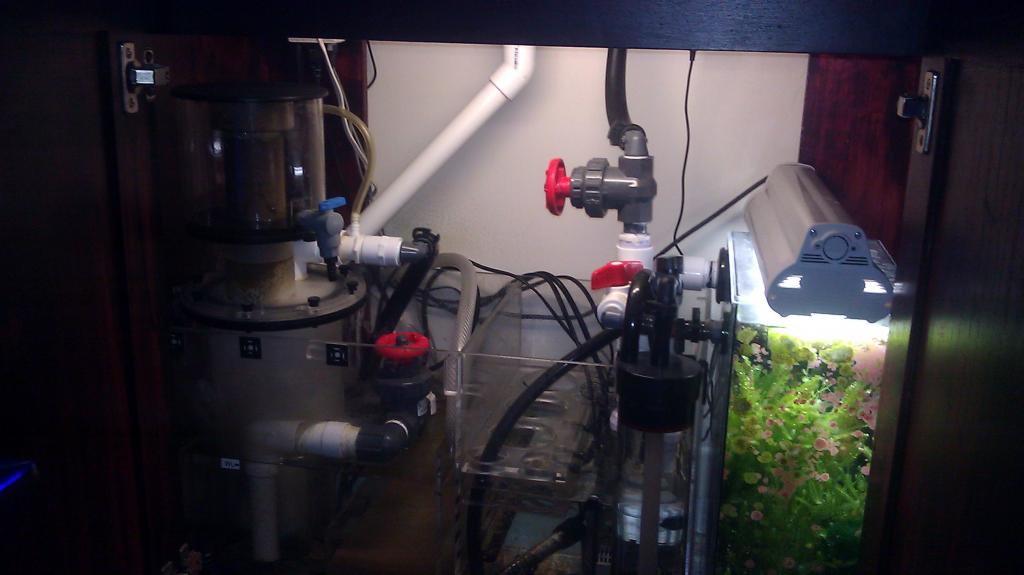

Here goes my pics, it's hard to see as everything in under the tank.

and the new added fuge.



[HanKami]

My Hybrid Sump



[Montaquelaveist]

HERE IS MY SCIENCE LAB



[Bry17nyc]

HERE IS MY SCIENCE LAB

thats the exact same skimmer i have...
how long have you had it for? how deep is the skimmer sitting in the water?



[Montaquelaveist]

thats the exact same skimmer i have...
how long have you had it for? how deep is the skimmer sitting in the water?

Ive had it for a little over a year and its in 8 inches of water all i need now is the piece for the gate valve to redirect the water down so its quieter lol



[slammin]

a couple of my basement sump when i had it setup. Loved this setup, dead silent upstairs, and lots of room to do anything i wanted in the sump. sections were frag/drain/return/fuge.



[darkblack]

This is helping me alot since I am trying to build my sump and refugium.thanks you all
