Parts List:
The LED's i'm using are 40 XR-E Royal Blues
and 30 XP-G R5
I actually got them cheaper at a group buy, but those links are for reference
Also bought Thermal Compond
Two x 10x15" Heatsink
An assortment of 40, 60, and 80 degree optics for the XR-E LEDs
6x Meanwell drivers
LED tester (useful in the future if 1 LED ever burns out and you're trying to find it)
Two x Nylon Washers
Two x Self Tapping Screws
I already have a power drill and drill bits, things like screw driver, electrical tape, soldering iron and 60/40 solder.
Also needed is a 10V adapter since these are dimable drivers, I didn't have any so I built a circuit which will output 10V with any adapter over 10V to 24V.
This link is very helpful if you want to know how to wire it up. It shows you both the meanwell, and the buckpuck so you can choose which way you want to go
http://aquariums.seaspraydesigns.biz/diy-projects/diy-high-power-led-aquarium-lighting-–-part-iii/
All the major parts

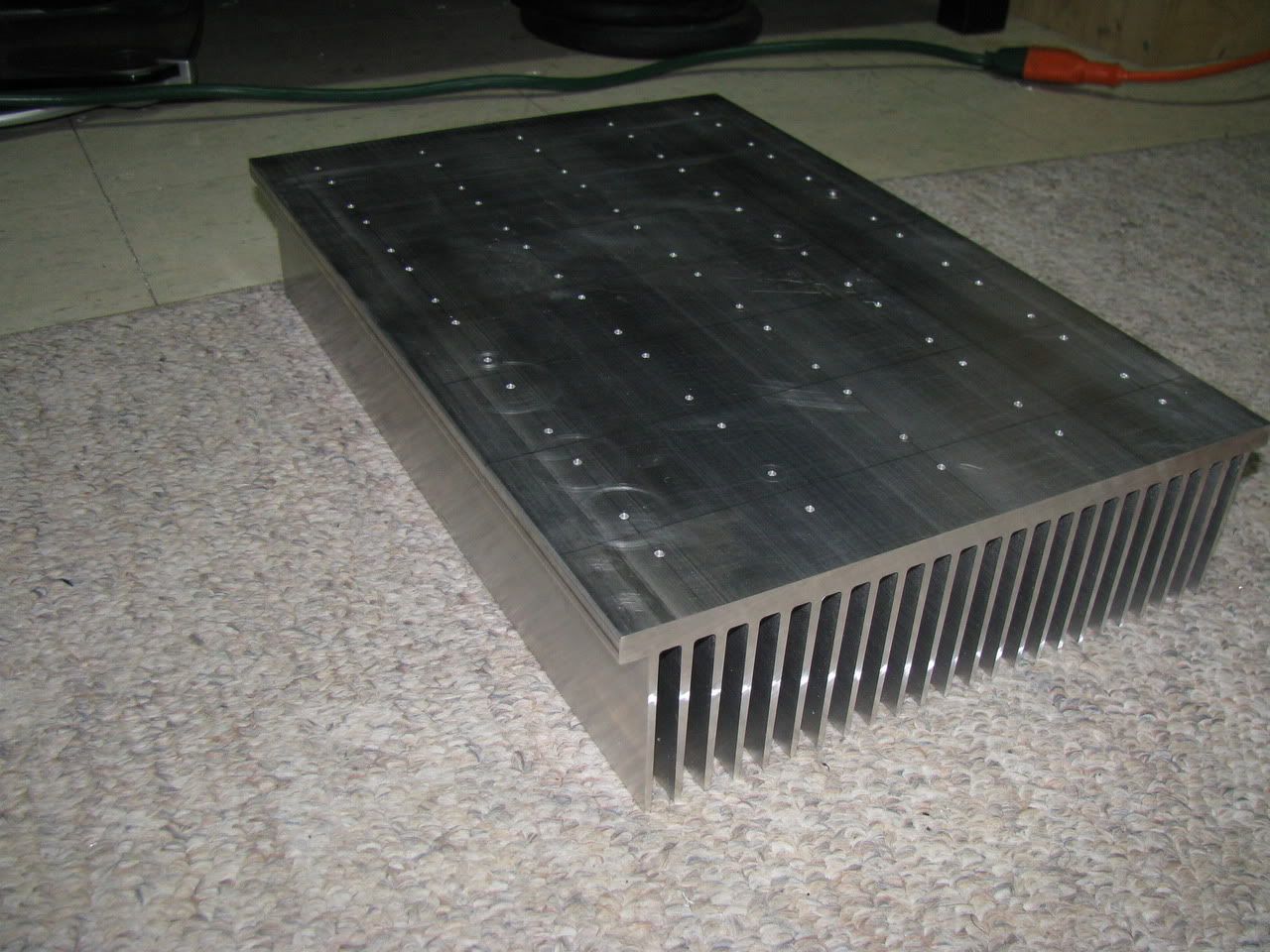

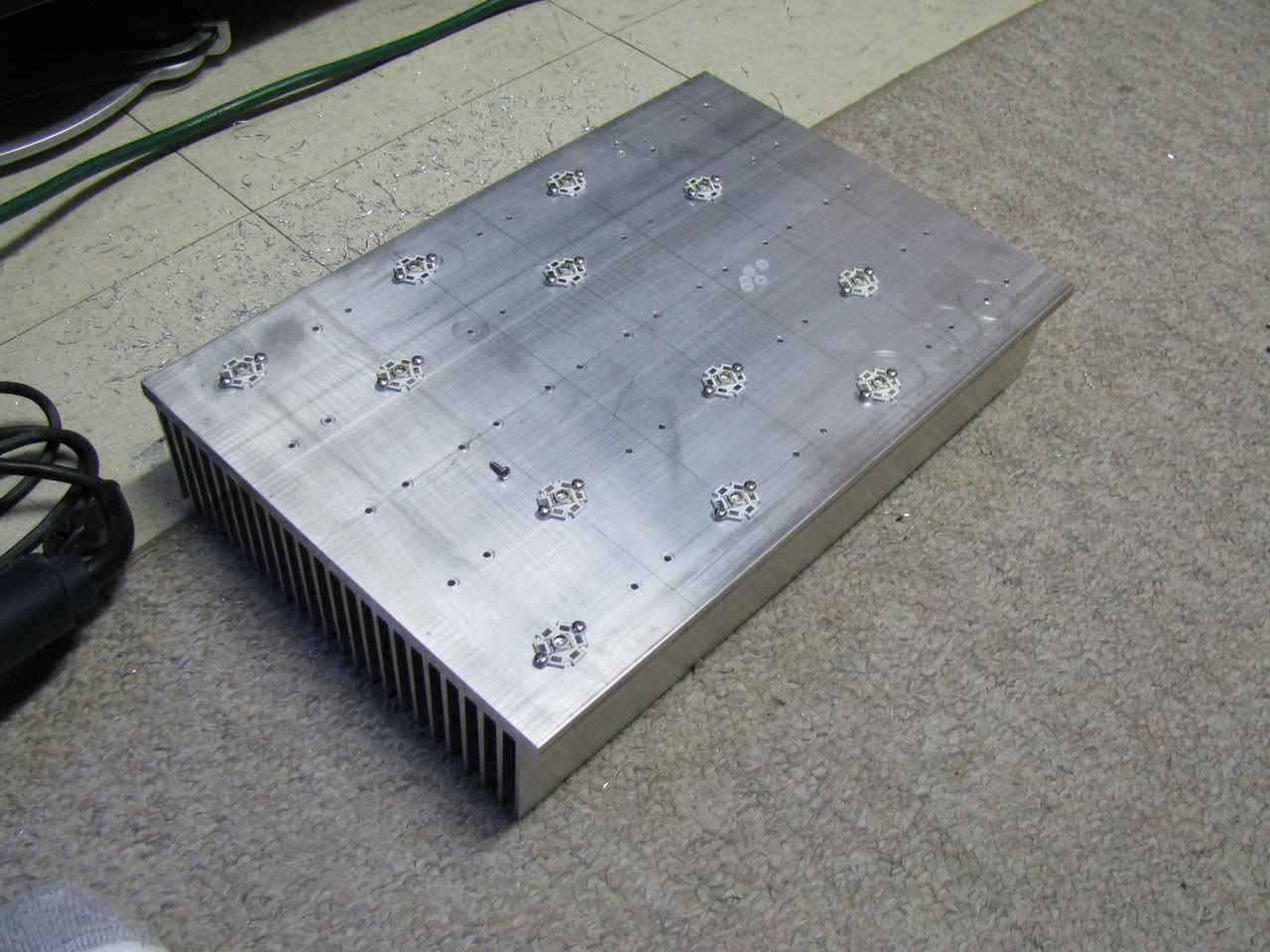

First thing I did was measure the heatsink so I can space the LEDs evenly. Then drilled 2 holes for each LED

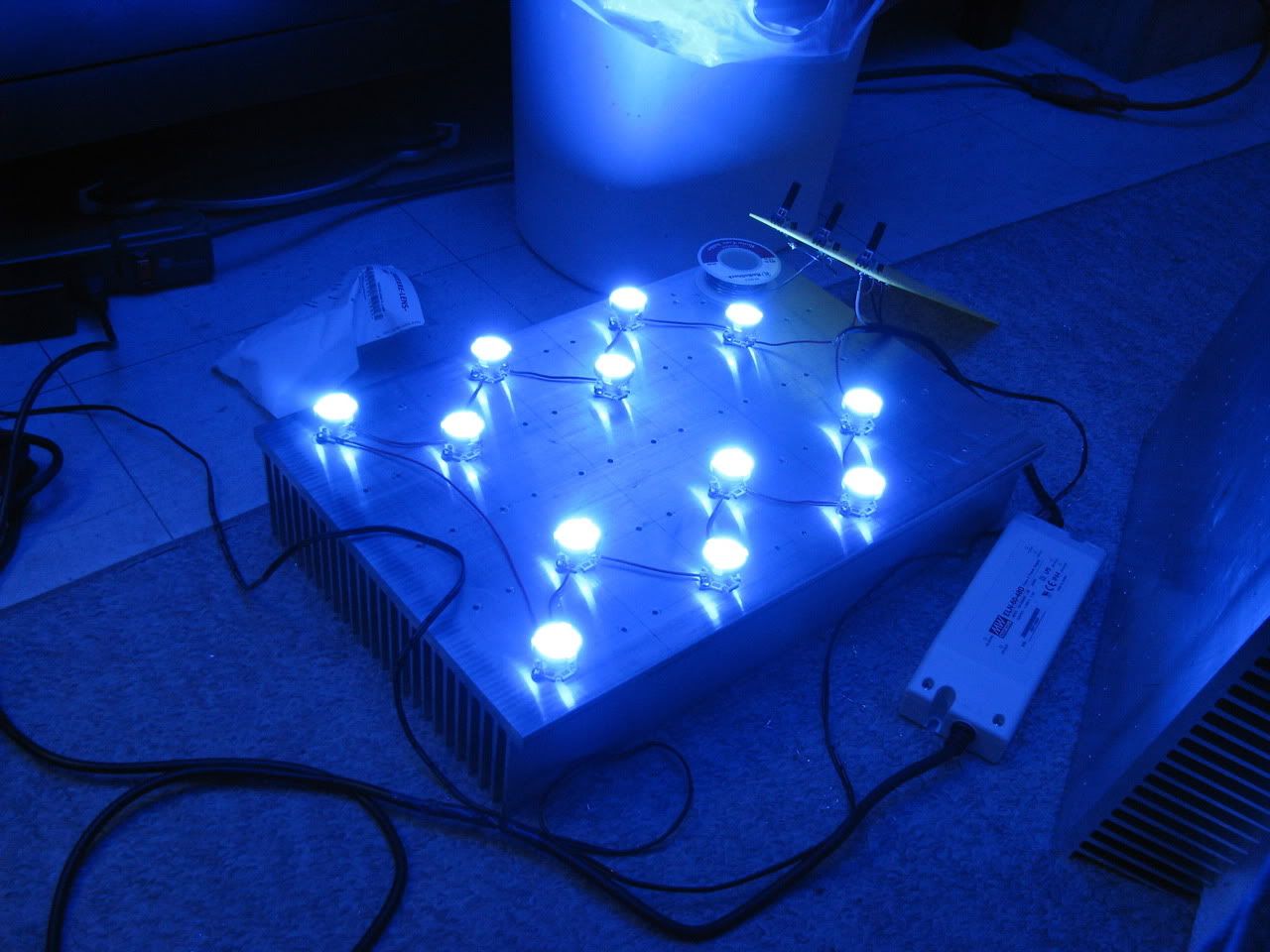

A quick test to see if I've done everything correctly.
I added optics because the LED's are too blinding even from the side. The optics focused the light much more straight.

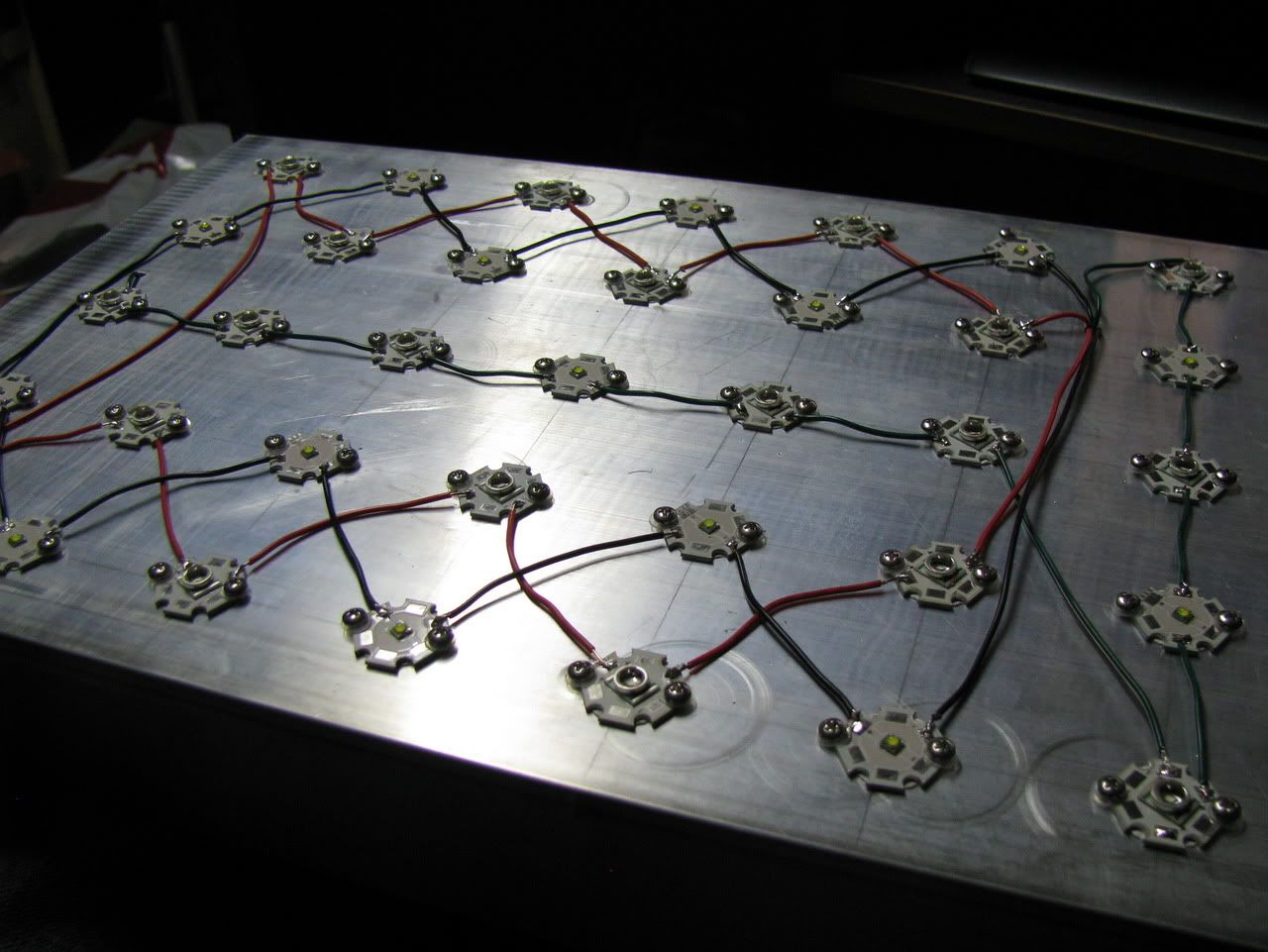

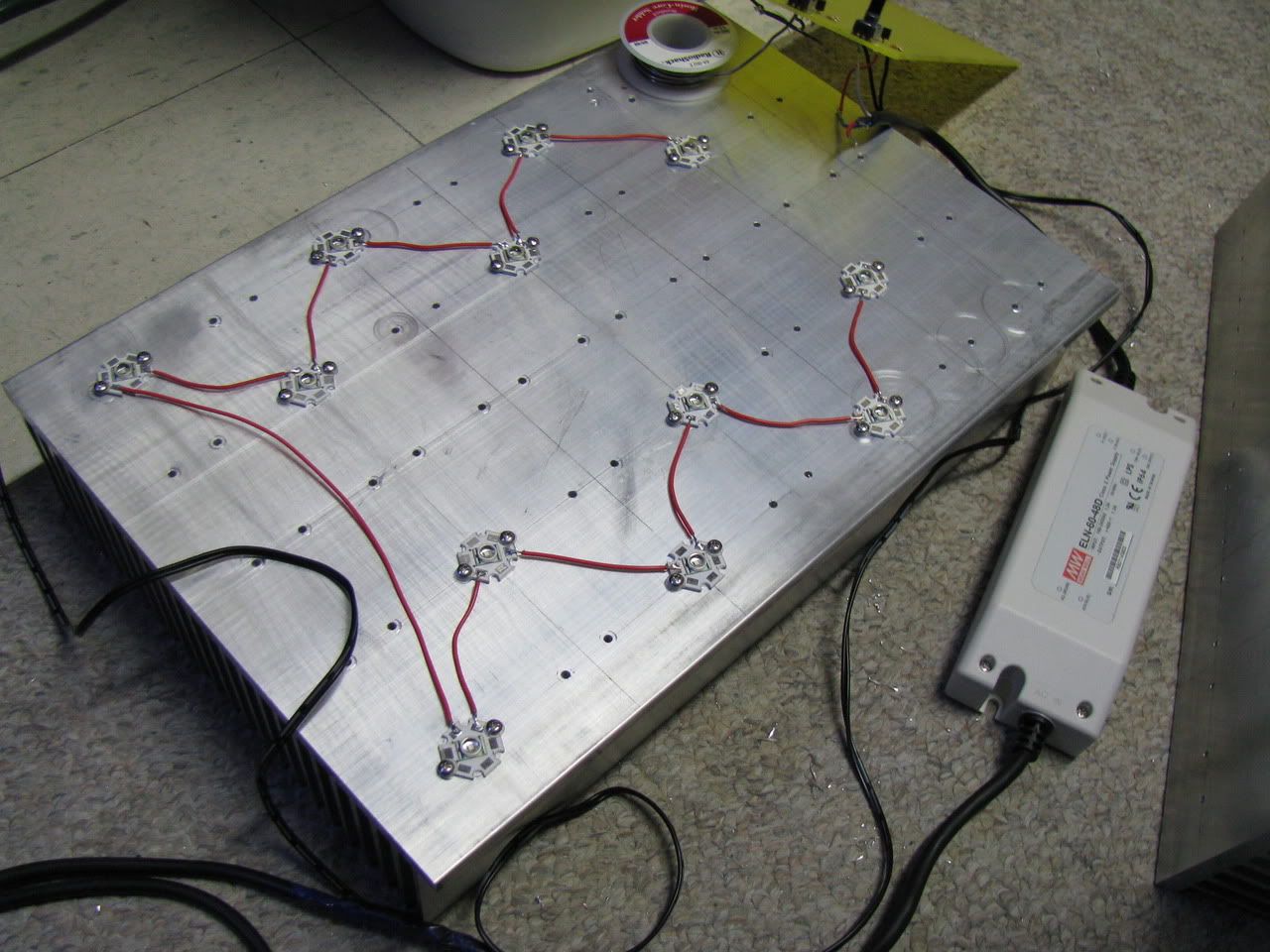

Wired up the whole heatsink

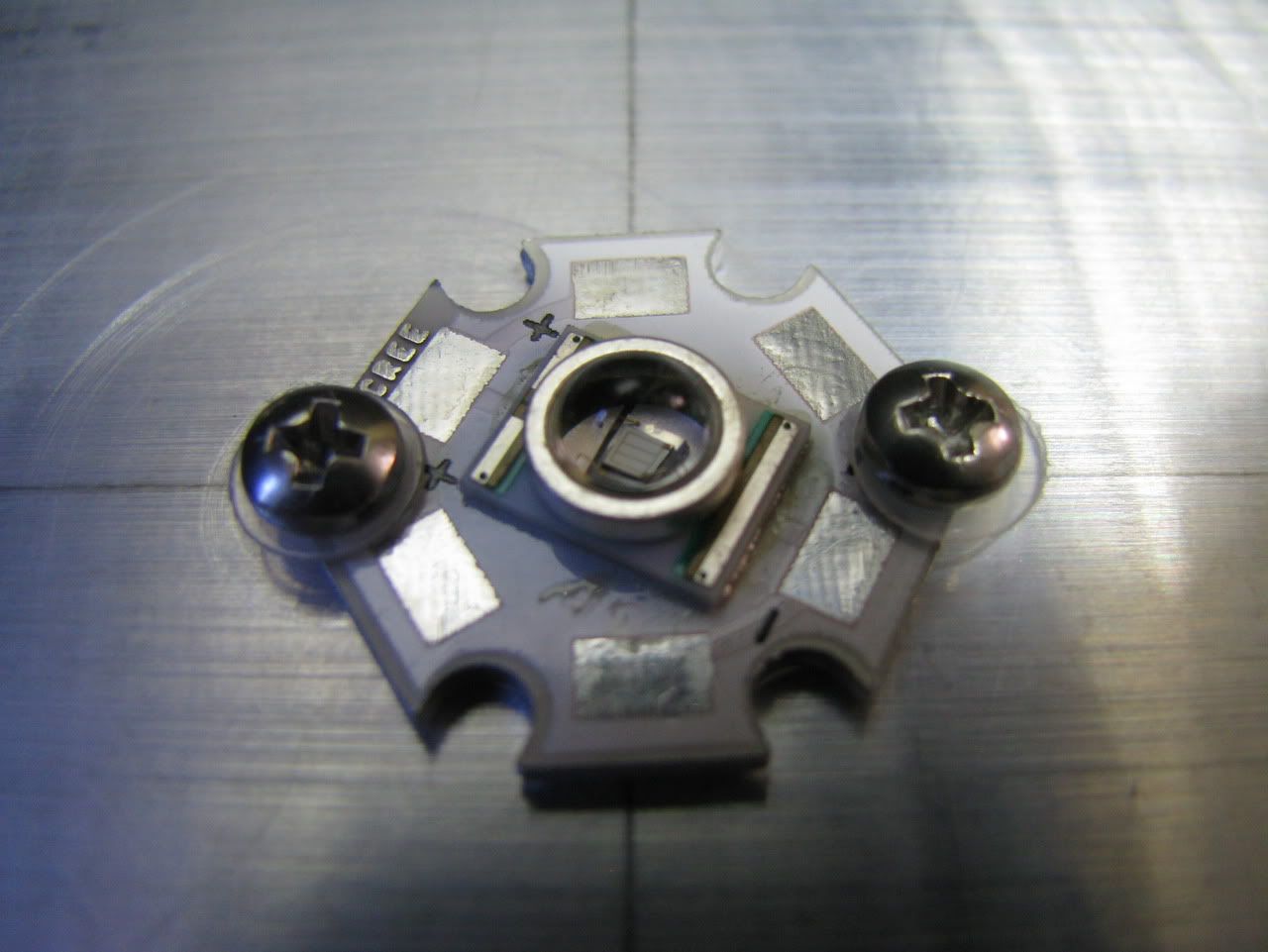

XP-G R5
XR-E Royal Blue
Right now, I'm looking for some quick disconnects I can put between the meanwell drivers and LED's, and another quick disconnect for the Dimmer.
Also, Does anybody have a multimeter which measures more then over 1Amp? Mine only measures up to 250mA, and I believe I can increase the output current of my drivers, but I need to measure it so I don't go over 1A, otherwise I'll probably burn out my LEDs.
Once all the wiring is compete, I will make an enclosure
The LED's i'm using are 40 XR-E Royal Blues
and 30 XP-G R5
I actually got them cheaper at a group buy, but those links are for reference
Also bought Thermal Compond
Two x 10x15" Heatsink
An assortment of 40, 60, and 80 degree optics for the XR-E LEDs
6x Meanwell drivers
LED tester (useful in the future if 1 LED ever burns out and you're trying to find it)
Two x Nylon Washers
Two x Self Tapping Screws
I already have a power drill and drill bits, things like screw driver, electrical tape, soldering iron and 60/40 solder.
Also needed is a 10V adapter since these are dimable drivers, I didn't have any so I built a circuit which will output 10V with any adapter over 10V to 24V.
This link is very helpful if you want to know how to wire it up. It shows you both the meanwell, and the buckpuck so you can choose which way you want to go
http://aquariums.seaspraydesigns.biz/diy-projects/diy-high-power-led-aquarium-lighting-–-part-iii/
All the major parts
First thing I did was measure the heatsink so I can space the LEDs evenly. Then drilled 2 holes for each LED
A quick test to see if I've done everything correctly.
I added optics because the LED's are too blinding even from the side. The optics focused the light much more straight.
Wired up the whole heatsink
XP-G R5
XR-E Royal Blue
Right now, I'm looking for some quick disconnects I can put between the meanwell drivers and LED's, and another quick disconnect for the Dimmer.
Also, Does anybody have a multimeter which measures more then over 1Amp? Mine only measures up to 250mA, and I believe I can increase the output current of my drivers, but I need to measure it so I don't go over 1A, otherwise I'll probably burn out my LEDs.
Once all the wiring is compete, I will make an enclosure
