RODI system question

[aaron23]

Hi guys,

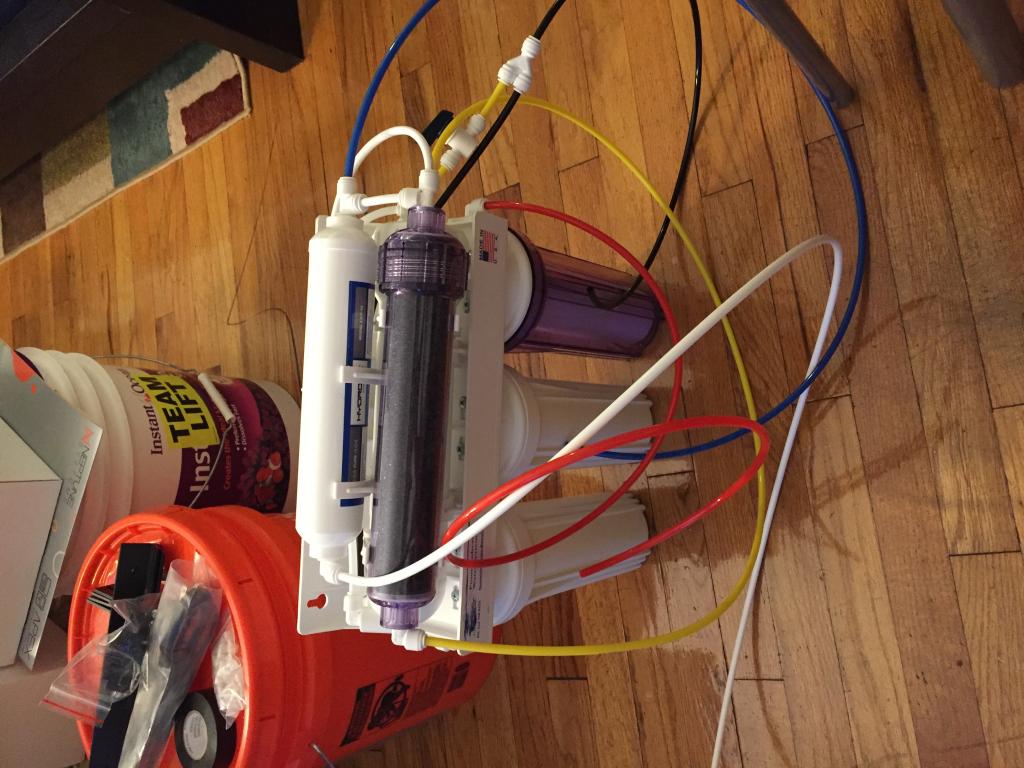

I'm assuming the red is the water feed input line, the black is the waste water line, the blue is clean pure water but what is the white and yellow line for its attached to the DI and the white tube is attached to the 150 Gpd filter...

Thanks in advance



[aaron23]

So the white is for the faucet. Since I don't have one what do I do with it? And the yellow is for the DI output line. What do I do with that?



[aaron23]

Can I remove both yellow and white wires lines and combine the white and yellow line?



[marrone]

Did the unit come with instructions?

Here are a couple of videos, they will help you get an idea of how the lines need to be connected, including a water storage tank. Do some more search on YouTube, that's the best thing to do.

https://www.youtube.com/watch?v=FAii8mJUM6k
https://www.youtube.com/watch?v=7A3VQjC-zzg



[Widdy]

Looks like a dual membrane system. 2x 75gpd? If so, the membranes needs to be connected in a series. See if this diagram will help -- http://www.thefilterguys.biz/dual_membrane_six_stage_ro-di_system.htm



[James983]

Whatever color line that goes into the first chamber is from your tap. Waste water will come off the RO chamber and good water will come from DI chamber. Normal color is red for waste and blue for good water.
